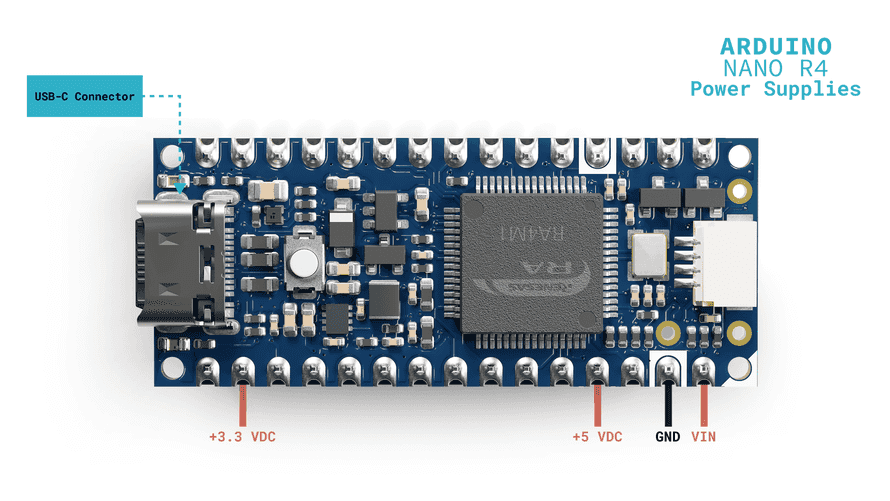

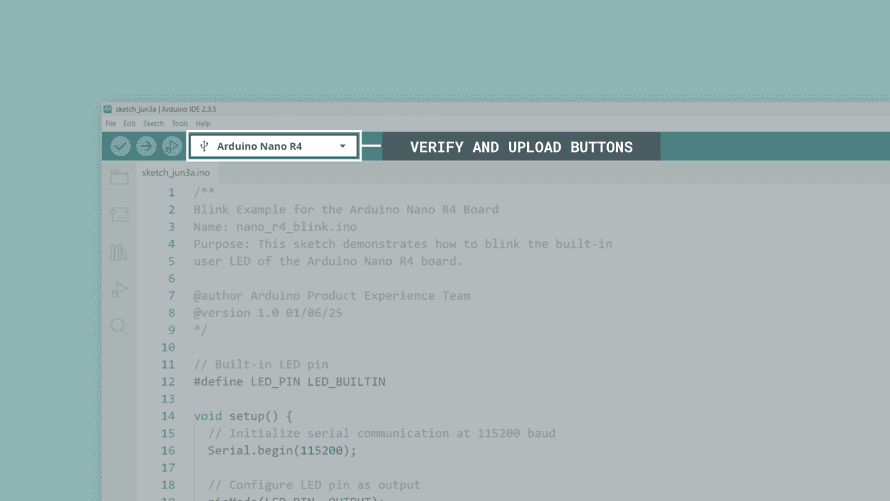

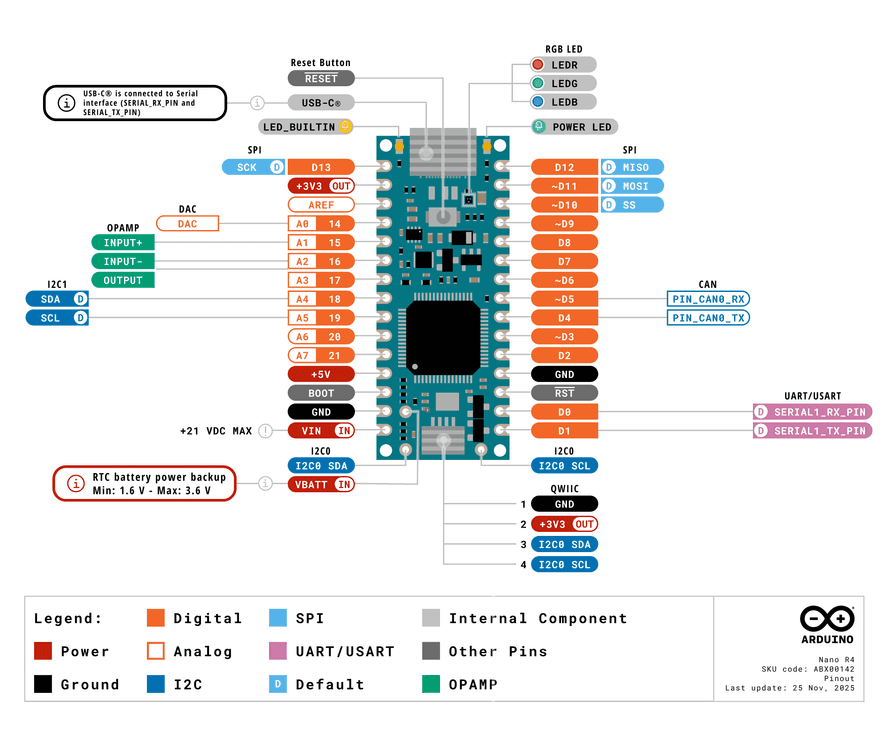

Blink Example for the Arduino Nano R4 Board
Name: nano_r4_blink.ino
Purpose: This sketch demonstrates how to blink the built-in
user LED of the Arduino Nano R4 board.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

// Built-in LED pin
#define LED_PIN LED_BUILTIN

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Configure LED pin as output
  pinMode(LED_PIN, OUTPUT);

  // Startup message
  Serial.println("- Arduino Nano R4 - Blink Example started...");
}

void loop() {
  // Turn on the LED, wait 1 second
  digitalWrite(LED_PIN, HIGH);
  Serial.println("- LED on!");
  delay(1000);

  // Turn off the LED, wait 1 second
  digitalWrite(LED_PIN, LOW);
  Serial.println("- LED off!");
  delay(1000);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

/**

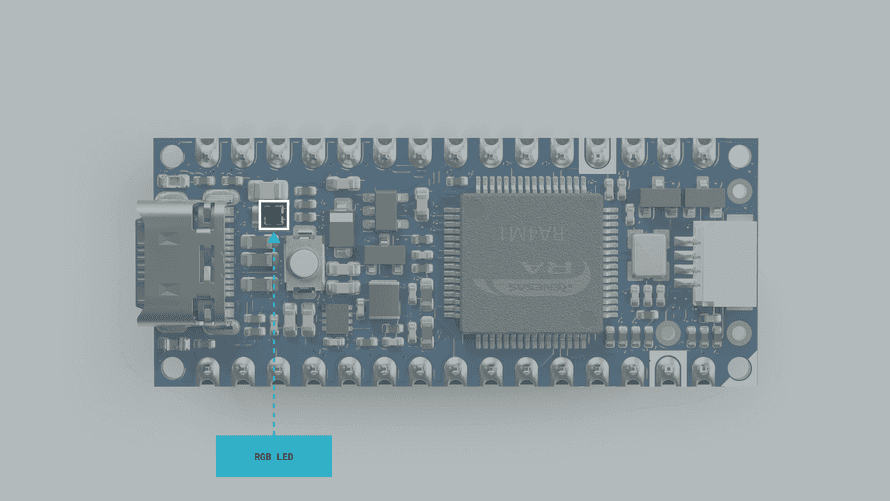

RGB LED Example for the Arduino Nano R4 Board
Name: nano_r4_rgb_led.ino
Purpose: This sketch demonstrates how to control the built-in
RGB LED of the Arduino Nano R4 board.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Initialize LEDR, LEDG and LEDB as outputs
  pinMode(LEDR, OUTPUT);
  pinMode(LEDG, OUTPUT);
  pinMode(LEDB, OUTPUT);

  // Turn off all LEDs initially
  digitalWrite(LEDR, HIGH);
  digitalWrite(LEDG, HIGH);
  digitalWrite(LEDB, HIGH);

  Serial.println("- Arduino Nano R4 - RGB LED Example started...");
}

void loop() {
  // Turn on the built-in red LED and turn off the rest
  digitalWrite(LEDR, LOW);
  digitalWrite(LEDG, HIGH);
  digitalWrite(LEDB, HIGH);
  Serial.println("- Red LED on!");
  delay(500);

  // Turn on the built-in green LED and turn off the rest
  digitalWrite(LEDR, HIGH);
  digitalWrite(LEDG, LOW);
  digitalWrite(LEDB, HIGH);
  Serial.println("- Green LED on!");
  delay(500);

  // Turn on the built-in blue LED and turn off the rest
  digitalWrite(LEDR, HIGH);
  digitalWrite(LEDG, HIGH);
  digitalWrite(LEDB, LOW);
  Serial.println("- Blue LED on!");
  delay(500);

  // Turn off all LEDs
  digitalWrite(LEDR, HIGH);
  digitalWrite(LEDG, HIGH);
  digitalWrite(LEDB, HIGH);
  Serial.println("- All LEDs off!");
  delay(500);
}

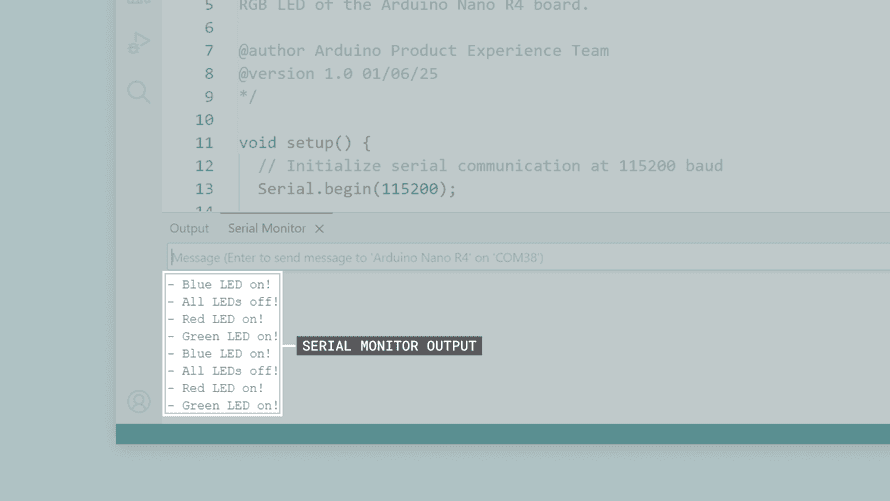

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

/**

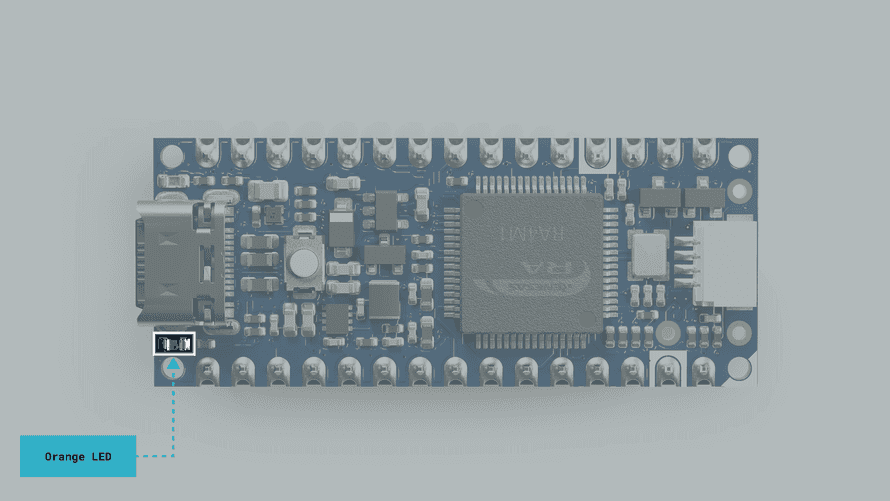

User LED Example for the Arduino Nano R4 Board
Name: nano_r4_user_led.ino
Purpose: This sketch demonstrates how to control the built-in
user LED of the Arduino Nano R4 board.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Configure LED_BUILTIN pin as output
  pinMode(LED_BUILTIN, OUTPUT);

  // Turn off LED initially
  digitalWrite(LED_BUILTIN, LOW);

  Serial.println("- Arduino Nano R4 - User LED Example started...");
}

void loop() {
  // Turn on the built-in user LED
  digitalWrite(LED_BUILTIN, HIGH);
  Serial.println("- User LED on!");
  delay(1000);

  // Turn off the built-in user LED
  digitalWrite(LED_BUILTIN, LOW);
  Serial.println("- User LED off!");
  delay(1000);
}

1

pinMode(pin, mode);

1

digitalWrite(pin, value);

1

digitalRead(pin);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62

/**

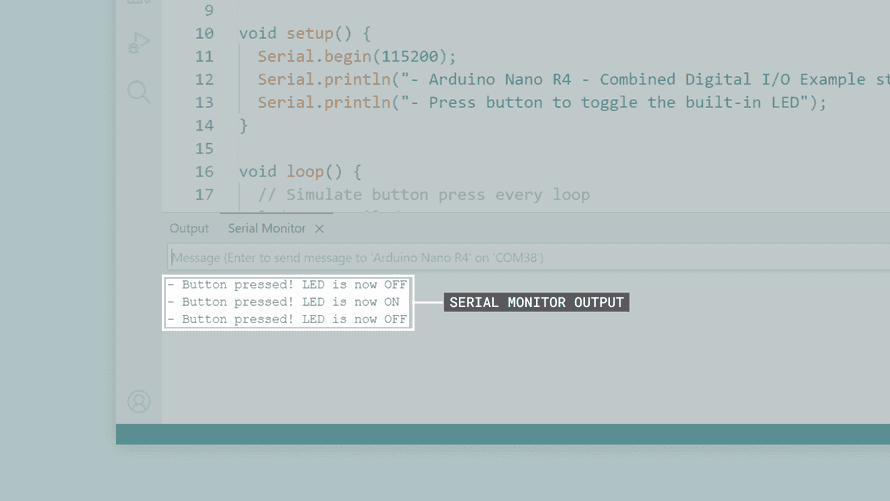

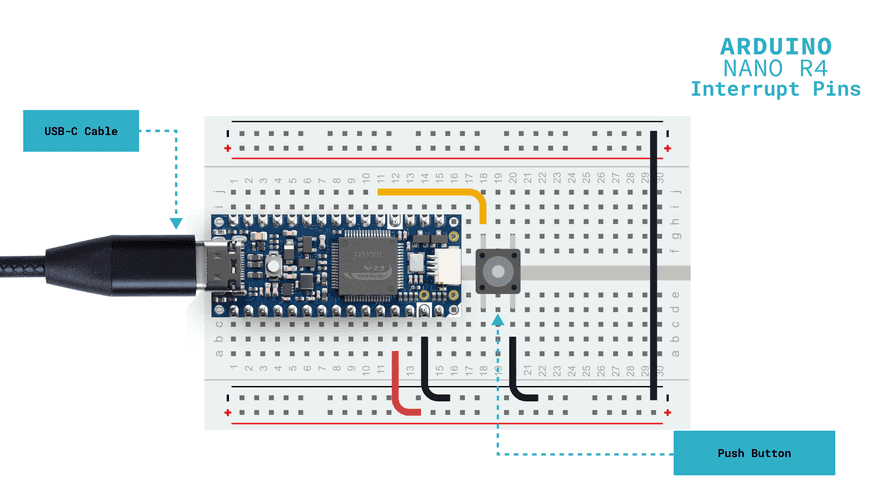

Combined Digital I/O Example for the Arduino Nano R4 Board
Name: nano_r4_digital_io_combined.ino
Purpose: This sketch demonstrates reading a button input and toggling
the built-in LED state each time the button is pressed.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

// Pin definitions
const int buttonPin = 2;            // Button input on D2
const int ledPin = LED_BUILTIN;     // Built-in LED

// Variables to store button and LED state
int buttonState = 0;
int lastButtonState = HIGH;
bool ledState = false;

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Configure pins
  pinMode(buttonPin, INPUT_PULLUP);
  pinMode(ledPin, OUTPUT);

  // Turn off LED initially
  digitalWrite(ledPin, LOW);

  Serial.println("- Arduino Nano R4 - Combined Digital I/O Example started...");
  Serial.println("- Press button to toggle the built-in LED");
}

void loop() {
  // Read current button state
  buttonState = digitalRead(buttonPin);

  // Check if button was just pressed (state change from HIGH to LOW)
  if (buttonState == LOW && lastButtonState == HIGH) {
    // Button press detected - toggle LED state
    ledState = !ledState;
    digitalWrite(ledPin, ledState);

    Serial.print("- Button pressed! LED is now ");
    if (ledState) {
      Serial.println("ON");
    } else {
      Serial.println("OFF");
    }

    // Simple debounce delay
    delay(50);
  }

  // Save current button state for next iteration
  lastButtonState = buttonState;

  // Small delay for stability
  delay(10);
}

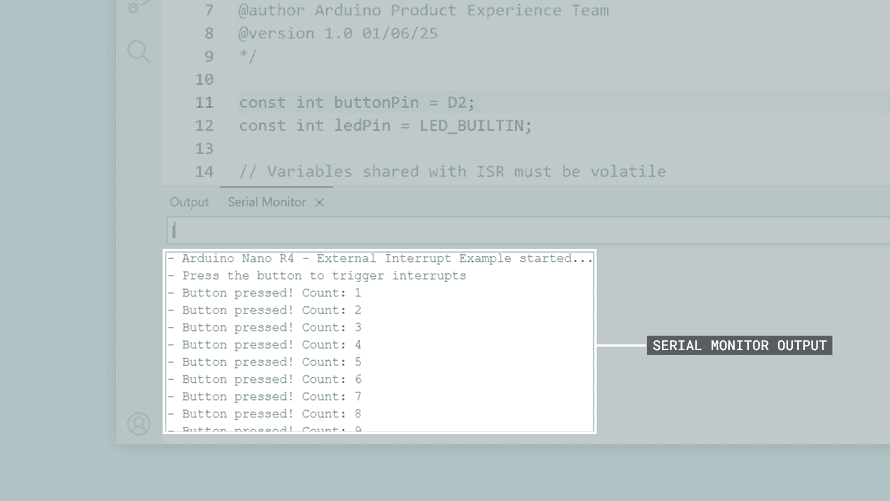

1

value = analogRead(pin);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

/**

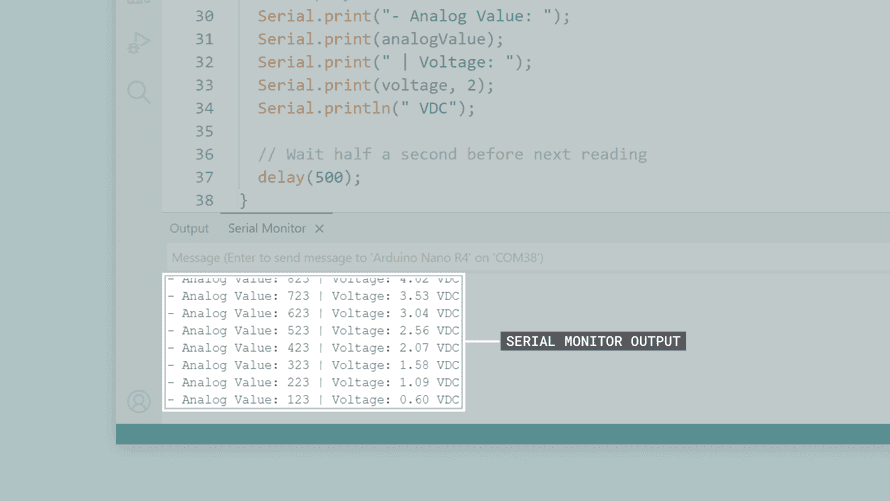

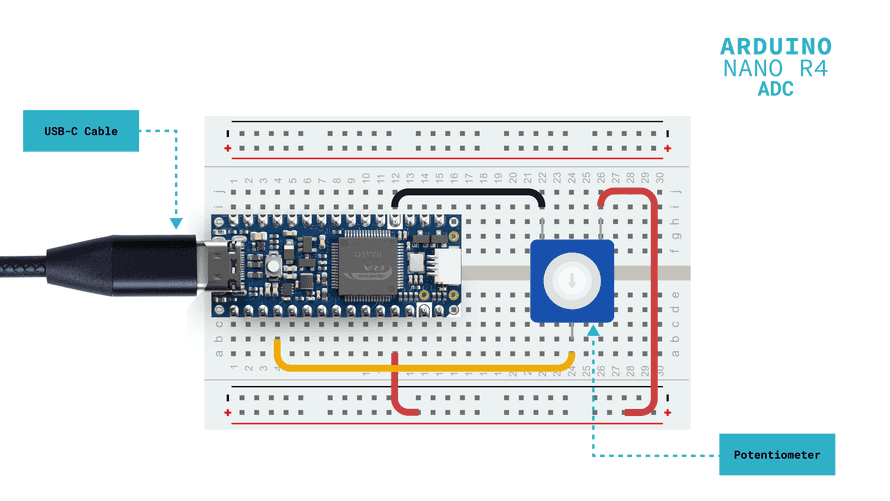

Analog Input Example for the Arduino Nano R4 Board
Name: nano_r4_analog_input.ino
Purpose: This sketch demonstrates how to read an analog input
and display the value on the Serial Monitor.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

// Analog input pin
const int analogPin = A0;

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  Serial.println("- Arduino Nano R4 - Analog Input Example started...");
  Serial.println("- Reading analog values from pin A0");
}

void loop() {
  // Read the analog value (0 - 1023 with 10-bit resolution)
  int analogValue = analogRead(analogPin);

  // Convert to voltage (0 to +5 VDC)
  float voltage = analogValue * (5.0 / 1023.0);

  // Display the results
  Serial.print("- Analog Value: ");
  Serial.print(analogValue);
  Serial.print(" | Voltage: ");
  Serial.print(voltage, 2);
  Serial.println(" VDC");

  // Wait half a second before next reading
  delay(500);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

/**
High-Resolution Analog Input Example for the Arduino Nano R4 Board
Name: nano_r4_analog_high_res.ino
Purpose: This sketch demonstrates how to use 14-bit resolution
for precise analog input measurements.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

// Analog input pin
const int analogPin = A0;

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Set analog read resolution to 14-bit (0 - 16383)
  analogReadResolution(14);

  Serial.println("- Arduino Nano R4 - High-Resolution Analog Input Example started...");
  Serial.println("- Using 14-bit resolution (0 - 16383)");
}

void loop() {
  // Read the analog value (0 - 16383 with 14-bit resolution)
  int analogValue = analogRead(analogPin);

  // Convert to voltage (0 - +5 VDC)
  float voltage = analogValue * (5.0 / 16383.0);

  // Calculate percentage (0 - 100%)
  float percentage = (analogValue / 16383.0) * 100.0;

  // Display the results
  Serial.print("- Analog Value: ");
  Serial.print(analogValue);
  Serial.print(" | Voltage: ");
  Serial.print(voltage, 3);
  Serial.print(" VDC | Percentage: ");
  Serial.print(percentage, 1);
  Serial.println(" %");

  // Wait half a second before next reading
  delay(500);
}

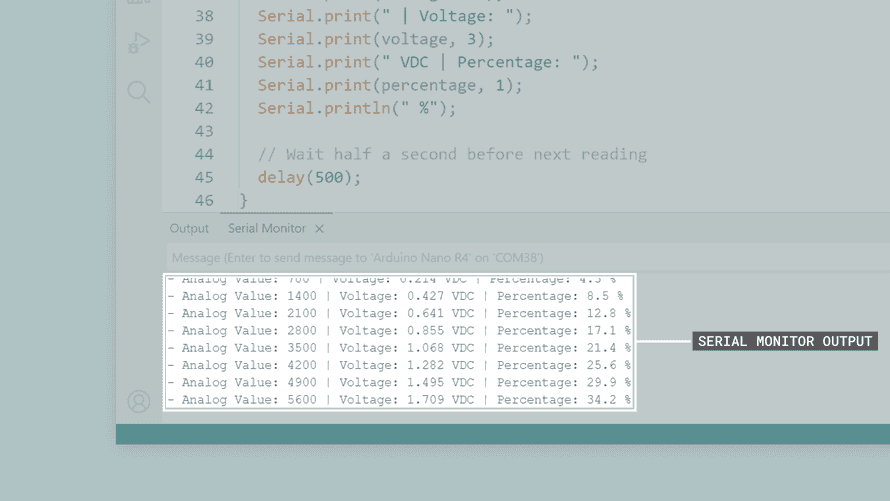

1

analogWrite(pin, value);

1

analogWriteResolution(resolution);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

/**
PWM Example for the Arduino Nano R4 Board
Name: nano_r4_pwm_led.ino
Purpose: This sketch demonstrates how to use PWM to control
the brightness of the built-in user LED of the Nano R4 board.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

// Built-in LED pin (supports PWM)
const int ledPin = LED_BUILTIN;

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // No need to set pinMode for PWM pins - analogWrite() handles this

  Serial.println("- Arduino Nano R4 - PWM LED Example started...");
  Serial.println("- Built-in LED will fade in and out continuously");
}

void loop() {
  // Fade in (0 to 255)
  for (int brightness = 0; brightness <= 255; brightness++) {
    analogWrite(ledPin, brightness);
    delay(5);
  }

  Serial.println("- LED at maximum brightness");
  delay(500);

  // Fade out (255 to 0)
  for (int brightness = 255; brightness >= 0; brightness--) {
    analogWrite(ledPin, brightness);
    delay(5);
  }

  Serial.println("- LED turned off");
  delay(500);
}

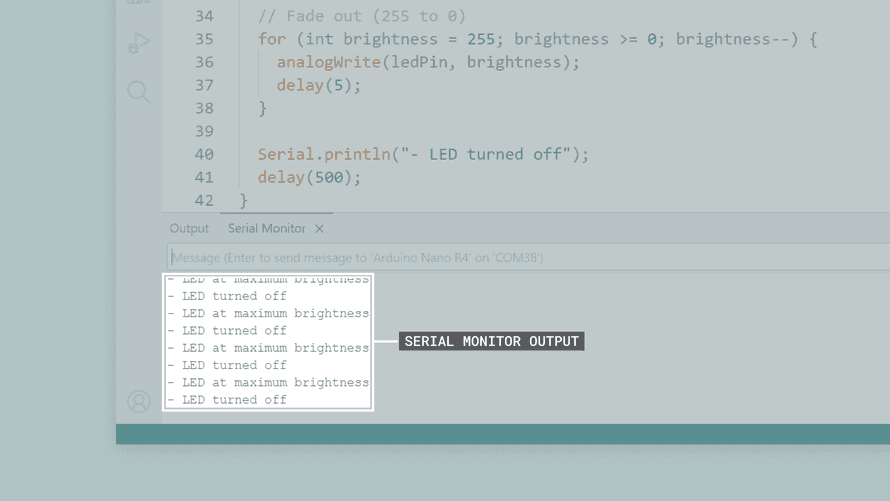

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

/**

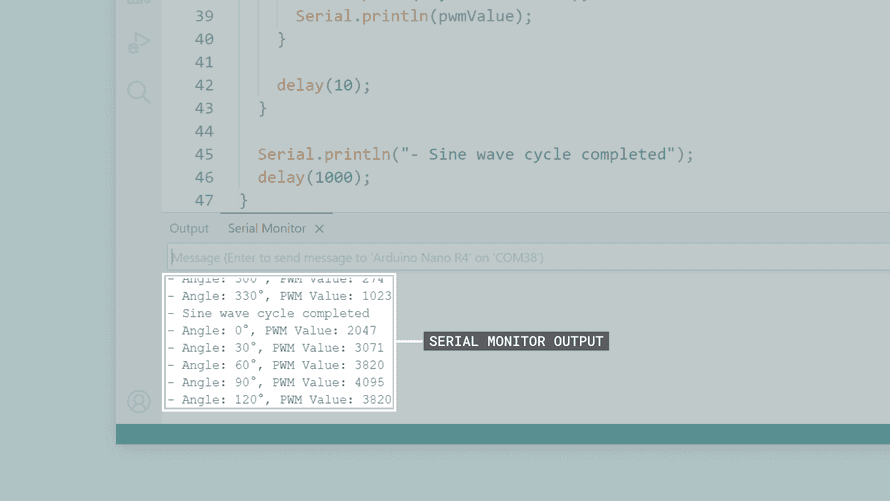

High-Resolution PWM Example for the Arduino Nano R4 Board
Name: nano_r4_pwm_high_res.ino
Purpose: This sketch demonstrates how to use 12-bit PWM resolution
for precise control of the built-in orange user LED brightness.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

// Built-in LED pin (supports PWM)
const int pwmPin = LED_BUILTIN;

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Set PWM resolution to 12-bit (0-4095)
  analogWriteResolution(12);

  Serial.println("- Arduino Nano R4 - High-Resolution PWM Example started...");
  Serial.println("- Using 12-bit resolution (0-4095) with built-in LED");
}

void loop() {
  // Generate a smooth sine wave using 12-bit PWM
  for (int i = 0; i < 360; i++) {
    // Calculate sine wave value and map to 12-bit range
    float sineValue = sin(i * PI / 180.0);
    int pwmValue = (int)((sineValue + 1.0) * 2047.5);  // Map -1 to 1 → 0 to 4095

    analogWrite(pwmPin, pwmValue);

    // Print current values every 30 degrees
    if (i % 30 == 0) {
      Serial.print("- Angle: ");
      Serial.print(i);
      Serial.print("°, PWM Value: ");
      Serial.println(pwmValue);
    }

    delay(10);
  }

  Serial.println("- Sine wave cycle completed");
  delay(1000);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

/**
OPAMP Example for the Arduino Nano R4 Board
Name: nano_r4_opamp_example.ino
Purpose: This sketch demonstrates how to initialize the built-in OPAMP.
Works for both voltage follower and amplifier configurations.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

#include <OPAMP.h>

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  Serial.println("- Arduino Nano R4 - OPAMP Example started...");
  Serial.println("- Initializing OPAMP in high-speed mode...");

  // Initialize OPAMP in high-speed mode
  OPAMP.begin(OPAMP_SPEED_HIGHSPEED);

  Serial.println("- OPAMP initialized successfully!");
  Serial.println("- OPAMP is now ready for use with external connections");
  Serial.println("- The behavior depends on how you connect the external components");
}

void loop() {
  // The OPAMP operates automatically based on external connections
  // No additional code needed in the loop

  Serial.println("- OPAMP running...");
  delay(2000);
}

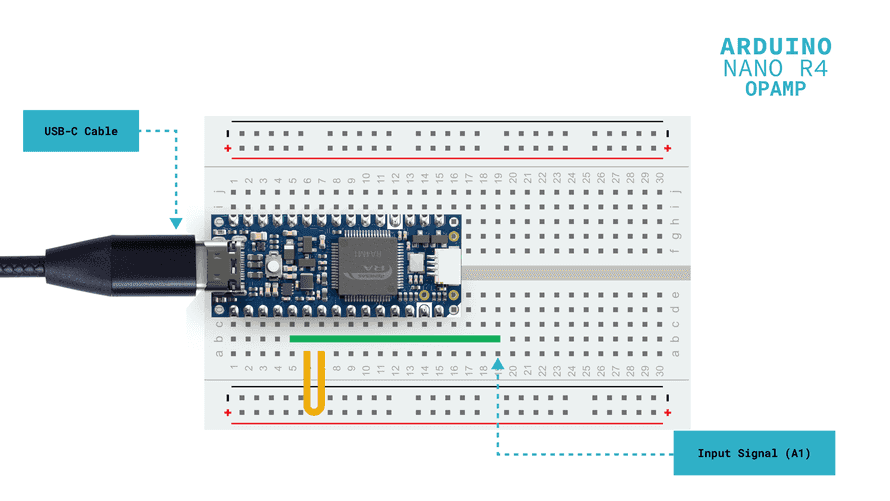

1

analogWrite(DAC, value);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45

/**

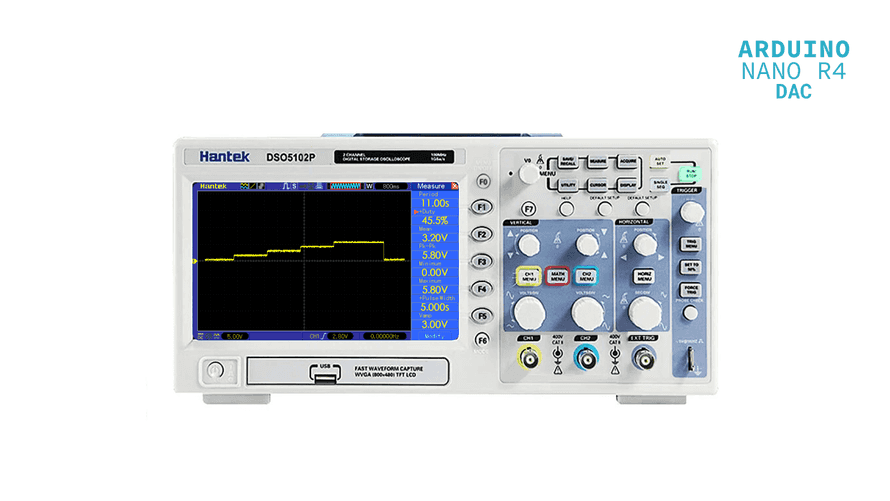

DAC Basic Output Example for the Arduino Nano R4 Board
Name: nano_r4_dac_basic.ino
Purpose: This sketch demonstrates how to use the DAC to generate
precise analog voltages on pin A0.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Set DAC resolution to 12-bit for maximum precision
  analogWriteResolution(12);

  Serial.println("- Arduino Nano R4 - DAC Basic Output Example started...");
  Serial.println("- Generating precise voltages on pin A0");
  Serial.println("- Connect a multimeter to A0 to measure output");
}

void loop() {
  // Generate different voltage levels
  // 0, +1.25, +2.5, +3.75 and +5 VDC
  int dacValues[] = {0, 1024, 2048, 3072, 4095};
  float voltages[] = {0.0, 1.25, 2.5, 3.75, 5.0};

  for (int i = 0; i < 5; i++) {
    analogWrite(DAC, dacValues[i]);

    Serial.print("- DAC Value: ");
    Serial.print(dacValues[i]);
    Serial.print(" | Target Voltage: ");
    Serial.print(voltages[i], 2);
    Serial.println(" VDC");

    // Hold each voltage for 2 seconds
    delay(2000);
  }

  Serial.println("- Cycle completed, repeating...");
  delay(1000);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

/**
DAC Sine Wave Generator for the Arduino Nano R4 Board
Name: nano_r4_dac_sine_wave.ino
Purpose: This sketch generates a smooth sine wave using the 12-bit DAC
for testing and signal generation applications.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Set DAC resolution to 12-bit for smooth waveform
  analogWriteResolution(12);

  Serial.println("- Arduino Nano R4 - DAC Sine Wave Generator started...");
  Serial.println("- Generating sine wave on pin A0");
  Serial.println("- Connect an oscilloscope to A0 to view waveform");
}

void loop() {
  // Generate one complete sine wave cycle (360 degrees)
  for (int angle = 0; angle < 360; angle++) {
    // Calculate sine value (-1 to +1) and convert to DAC range (0 to 4095)
    float sineValue = sin(angle * PI / 180.0);
    int dacValue = (int)((sineValue + 1.0) * 2047.5);  // Center at +2.5 VDC

    // Output the calculated value to DAC
    analogWrite(DAC, dacValue);

    // Print debug info every 30 degrees
    if (angle % 30 == 0) {
      float voltage = (dacValue / 4095.0) * 5.0;
      Serial.print("- Angle: ");
      Serial.print(angle);
      Serial.print("° | DAC: ");
      Serial.print(dacValue);
      Serial.print(" | Voltage: ");
      Serial.print(voltage, 2);
      Serial.println(" VDC");
    }

    // Control wave frequency (~28 Hz)
    delayMicroseconds(100);
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91

/**
RTC Basic Example for the Arduino Nano R4 Board
Name: nano_r4_rtc_basic.ino
Purpose: This sketch demonstrates how to use the built-in RTC
to keep track of date and time.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

#include "RTC.h"

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  Serial.println("- Arduino Nano R4 - RTC Basic Example started...");
  Serial.println("- Initializing RTC...");

  // Initialize RTC
  RTC.begin();

  // Set initial time: January 15, 2025, 12:00:00 PM, Monday
  RTCTime startTime(15, Month::JANUARY, 2025, 12, 0, 0, DayOfWeek::MONDAY, SaveLight::SAVING_TIME_INACTIVE);
  RTC.setTime(startTime);

  Serial.println("- RTC time has been set to January 15, 2025, 12:00:00 PM");
  Serial.println("- Current date and time will be displayed every second");
}

void loop() {
  // Get current time from RTC
  RTCTime currentTime;
  RTC.getTime(currentTime);

  // Get individual values
  int year = currentTime.getYear();
  int month = Month2int(currentTime.getMonth());
  int day = currentTime.getDayOfMonth();

  int hour = currentTime.getHour();
  int minute = currentTime.getMinutes();
  int second = currentTime.getSeconds();

  // Display date (YYYY/MM/DD)
  Serial.print("Date: ");
  Serial.print(year);
  Serial.print("/");
  if (month < 10) Serial.print("0");
  Serial.print(month);
  Serial.print("/");
  if (day < 10) Serial.print("0");
  Serial.print(day);

  // Display time (HH:MM:SS)
  Serial.print(" | Time: ");
  if (hour < 10) Serial.print("0");
  Serial.print(hour);
  Serial.print(":");
  if (minute < 10) Serial.print("0");
  Serial.print(minute);
  Serial.print(":");
  if (second < 10) Serial.print("0");
  Serial.print(second);

  // Display day of week
  Serial.print(" | Day: ");
  DayOfWeek dayOfWeek = currentTime.getDayOfWeek();

  if (dayOfWeek == DayOfWeek::MONDAY) {
    Serial.print("Monday");
  } else if (dayOfWeek == DayOfWeek::TUESDAY) {
    Serial.print("Tuesday");
  } else if (dayOfWeek == DayOfWeek::WEDNESDAY) {
    Serial.print("Wednesday");
  } else if (dayOfWeek == DayOfWeek::THURSDAY) {
    Serial.print("Thursday");
  } else if (dayOfWeek == DayOfWeek::FRIDAY) {
    Serial.print("Friday");
  } else if (dayOfWeek == DayOfWeek::SATURDAY) {
    Serial.print("Saturday");
  } else if (dayOfWeek == DayOfWeek::SUNDAY) {
    Serial.print("Sunday");
  }

  Serial.println();

  // Wait one second before next reading
  delay(1000);
}

1
2
3
4
5
6

// Create RTCTime object with current date and time
// Format: day, month, year, hour, minute, second, dayOfWeek, daylightSaving
RTCTime newTime(30, Month::JUNE, 2025, 15, 30, 45, DayOfWeek::MONDAY, SaveLight::SAVING_TIME_INACTIVE);

// Set the RTC time
RTC.setTime(newTime);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58

/**
EEPROM Basic Example for the Arduino Nano R4 Board
Name: nano_r4_eeprom_basic.ino
Purpose: This sketch demonstrates how to store and retrieve data
from the built-in EEPROM memory.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

#include <EEPROM.h>

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  Serial.println("- Arduino Nano R4 - EEPROM Basic Example started...");

  // Read a counter from EEPROM address 0
  int bootCounter = EEPROM.read(0);

  // If this is the first time (EEPROM starts with 255), set counter to 0
  if (bootCounter == 255) {
    bootCounter = 0;
    Serial.println("- First boot detected!");
  }

  // Add 1 to the counter
  bootCounter = bootCounter + 1;

  // Save the new counter value to EEPROM
  EEPROM.write(0, bootCounter);

  // Show the results
  Serial.print("- This board has been reset ");
  Serial.print(bootCounter);
  Serial.println(" times");

  // Store a user preference (LED brightness)
  int brightness = 128;  // Value from 0 to 255
  EEPROM.write(1, brightness);
  Serial.print("- LED brightness setting saved: ");
  Serial.println(brightness);

  // Read the brightness setting back
  int savedBrightness = EEPROM.read(1);
  Serial.print("- LED brightness setting loaded: ");
  Serial.println(savedBrightness);

  Serial.println("- Reset the board to see the counter increase!");
}

void loop() {
  // Nothing to do in the loop
  // The counter only increases when you reset the board
  delay(1000);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

// Define a structure for complex data
struct Settings {
  int threshold;
  float calibration;
  bool enabled;
  char deviceName[16];
};

// Store structure to EEPROM
Settings mySettings = {512, 3.14, true, "NanoR4Device"};
EEPROM.put(0, mySettings);

// Read structure from EEPROM
Settings loadedSettings;
EEPROM.get(0, loadedSettings);

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76

/**
UART Basic Example for the Arduino Nano R4 Board
Name: nano_r4_uart_basic.ino
Purpose: This sketch demonstrates basic UART communication
using both USB Serial and hardware Serial1.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

void setup() {
  // Initialize USB serial communication at 115200 baud
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  // Initialize hardware serial on pins D0/D1 at 9600 baud
  Serial1.begin(9600);

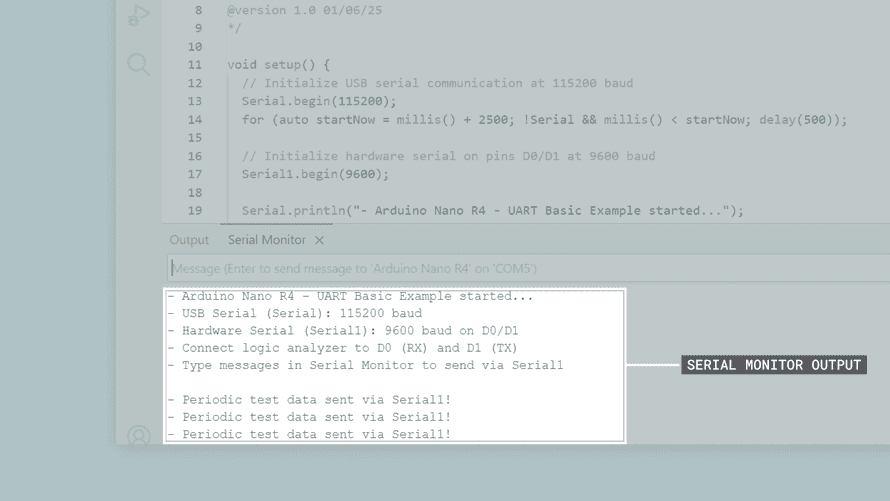

  Serial.println("- Arduino Nano R4 - UART Basic Example started...");
  Serial.println("- USB Serial (Serial): 115200 baud");
  Serial.println("- Hardware Serial (Serial1): 9600 baud on D0/D1");
  Serial.println("- Connect logic analyzer to D0 (RX) and D1 (TX)");
  Serial.println("- Type messages in Serial Monitor to send via Serial1");
  Serial.println();
}

void loop() {
  // Check for data from USB Serial (computer)
  if (Serial.available()) {
    String message = Serial.readString();

    // Remove newline characters
    message.trim();

    if (message.length() > 0) {
      Serial.print("- USB received: \"");
      Serial.print(message);
      Serial.println("\"");

      // Send the message via Serial1 (D0/D1)
      Serial1.print("- Message from USB: ");
      Serial1.println(message);

      Serial.println("- Message sent via Serial1 (D0/D1)!");
    }
  }

  // Check for data from Serial1 (external device on D0/D1)
  if (Serial1.available()) {
    String response = Serial1.readString();

    // Remove newline characters
    response.trim();

    if (response.length() > 0) {
      Serial.print("- Serial1 received: \"");
      Serial.print(response);
      Serial.println("\"");
    }
  }

  // Send periodic test data via Serial1
  static unsigned long lastSend = 0;
  if (millis() - lastSend > 3000) {
    lastSend = millis();

    // Send test data with timestamp
    Serial1.print("Test data: ");
    Serial1.print(millis());
    Serial1.println(" ms");

    Serial.println("- Periodic test data sent via Serial1!");
  }

  delay(10);
}

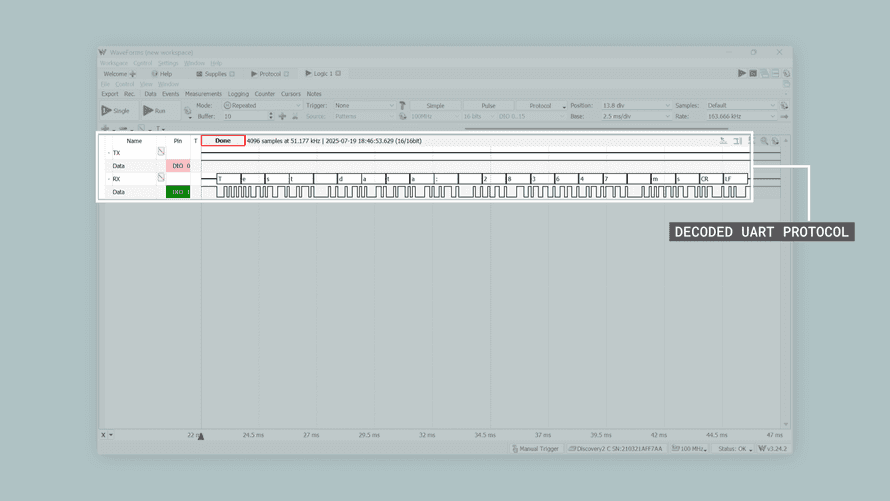

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

// Example: Connecting a GPS module via Serial1
void setup() {
  Serial.begin(115200);   // USB debugging
  Serial1.begin(9600);    // GPS module communication

  Serial.println("GPS module communication started");
}

void loop() {
  // Forward GPS data to USB Serial for monitoring
  if (Serial1.available()) {
    String gpsData = Serial1.readString();
    Serial.print("GPS: ");
    Serial.print(gpsData);
  }

  // Send commands to GPS module from USB Serial
  if (Serial.available()) {
    String command = Serial.readString();
    Serial1.print(command);
    Serial.println("Command sent to GPS");
  }
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96

/**
SPI Basic Example for the Arduino Nano R4 Board
Name: nano_r4_spi_basic.ino
Purpose: This sketch demonstrates how to use SPI communication
to send and receive data.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

#include <SPI.h>

// Chip Select pin for SPI device
const int CS_PIN = 10;

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  Serial.println("- Arduino Nano R4 - SPI Basic Example started...");

  // Set CS pin as output and set it HIGH (inactive)
  pinMode(CS_PIN, OUTPUT);
  digitalWrite(CS_PIN, HIGH);

  // Initialize SPI communication
  SPI.begin();

  // Configure SPI settings
  // - Clock speed: 1 MHz (1000000 Hz)
  // - Data order: Most Significant Bit first
  // - Data mode: Mode 0 (Clock polarity = 0, Clock phase = 0)
  SPI.beginTransaction(SPISettings(1000000, MSBFIRST, SPI_MODE0));

  Serial.println("- SPI initialized successfully");
  Serial.println("- Ready to communicate with SPI devices");

  // Example: Send some test data
  sendSPIData();
}

void loop() {
  // Send a counter value every 2 seconds
  static int counter = 0;

  // Select the device (CS LOW)
  digitalWrite(CS_PIN, LOW);

  // Send counter value
  byte response = SPI.transfer(counter);

  // Deselect the device (CS HIGH)
  digitalWrite(CS_PIN, HIGH);

  // Display results
  Serial.print("- Sent: ");
  Serial.print(counter);
  Serial.print(" | Received: ");
  Serial.println(response);

  // Increment counter and wrap around at 255
  counter++;
  if (counter > 255) {
    counter = 0;
  }

  delay(2000);
}

void sendSPIData() {
  Serial.println("- Sending test data...");

  // Select the device
  digitalWrite(CS_PIN, LOW);

  // Send a sequence of test bytes
  for (int i = 0; i < 5; i++) {
    byte testData = 0x10 + i;  // Send 0x10, 0x11, 0x12, 0x13, 0x14
    byte response = SPI.transfer(testData);

    Serial.print("  Sent: 0x");
    if (testData < 16) Serial.print("0");
    Serial.print(testData, HEX);
    Serial.print(" | Received: 0x");
    if (response < 16) Serial.print("0");
    Serial.println(response, HEX);

    delay(100);
  }

  // Deselect the device
  digitalWrite(CS_PIN, HIGH);

  Serial.println("- Test data transmission complete");
}

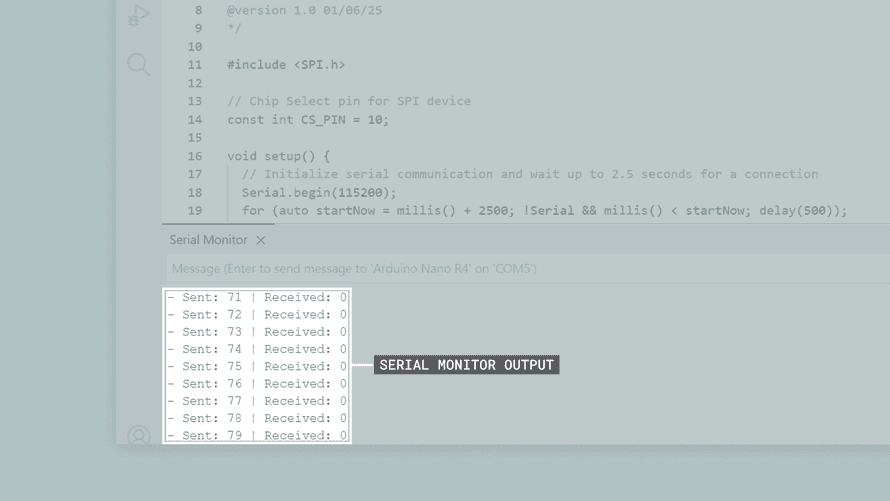

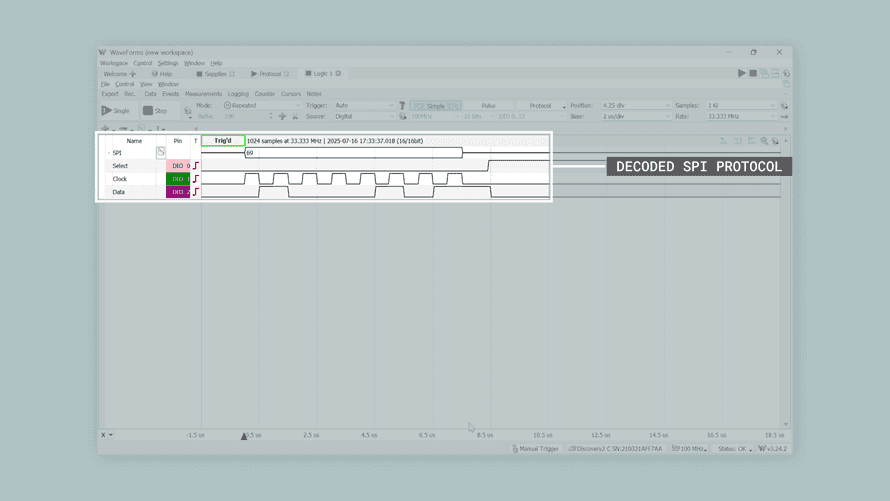

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

// Multiple device example
const int DEVICE1_CS = 10;  // First SPI device
const int DEVICE2_CS = 9;   // Second SPI device
const int DEVICE3_CS = 8;   // Third SPI device

void setup() {
  SPI.begin();

  // Configure all CS pins
  pinMode(DEVICE1_CS, OUTPUT);
  pinMode(DEVICE2_CS, OUTPUT);
  pinMode(DEVICE3_CS, OUTPUT);

  // Set all CS pins HIGH (inactive)
  digitalWrite(DEVICE1_CS, HIGH);
  digitalWrite(DEVICE2_CS, HIGH);
  digitalWrite(DEVICE3_CS, HIGH);
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66

/**

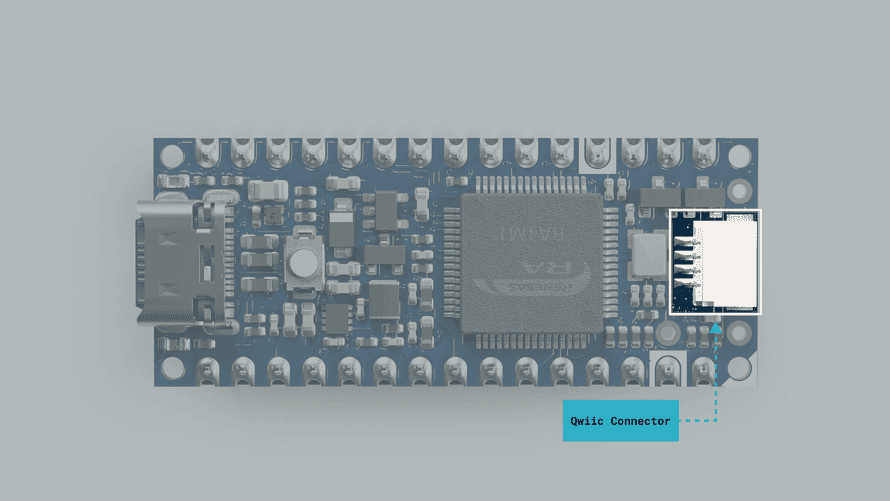

I2C Basic Example for the Arduino Nano R4 Board
Name: nano_r4_i2c_basic.ino
Purpose: This sketch demonstrates basic I2C communication
patterns for protocol analysis.

@author Arduino Product Experience Team
@version 1.0 01/06/25
*/

#include <Wire.h>

// Example device address
const int DEVICE_ADDRESS = 0x48;

void setup() {
  // Initialize serial communication and wait up to 2.5 seconds for a connection
  Serial.begin(115200);
  for (auto startNow = millis() + 2500; !Serial && millis() < startNow; delay(500));

  Serial.println("- Arduino Nano R4 - I2C Basic Example started...");

  // Initialize I2C communication as master
  Wire.begin();

  Serial.println("- I2C initialized successfully");
  Serial.println("- Connect protocol analyzer to A4 (SDA) and A5 (SCL)");
  Serial.println("- Starting I2C communication patterns...");

  delay(2000);
}

void loop() {
  // Write a single byte
  Serial.println("- Writing single byte (0xAA) to device 0x48...");
  Wire.beginTransmission(DEVICE_ADDRESS);
  Wire.write(0xAA);
  Wire.endTransmission();

  delay(1000);

  // Write multiple bytes
  Serial.println("- Writing multiple bytes (0x10, 0x20, 0x30) to device 0x48...");
  Wire.beginTransmission(DEVICE_ADDRESS);
  Wire.write(0x10);
  Wire.write(0x20);
  Wire.write(0x30);
  Wire.endTransmission();

  delay(1000);

  // Request data from device
  Serial.println("- Requesting 2 bytes from device 0x48...");
  Wire.requestFrom(DEVICE_ADDRESS, 2);

  // Read any available data
  while (Wire.available()) {
    int data = Wire.read();
    Serial.print("Received: 0x");
    if (data < 16) Serial.print("0");
    Serial.println(data, HEX);
  }

  delay(2000);
  Serial.println("---");
}

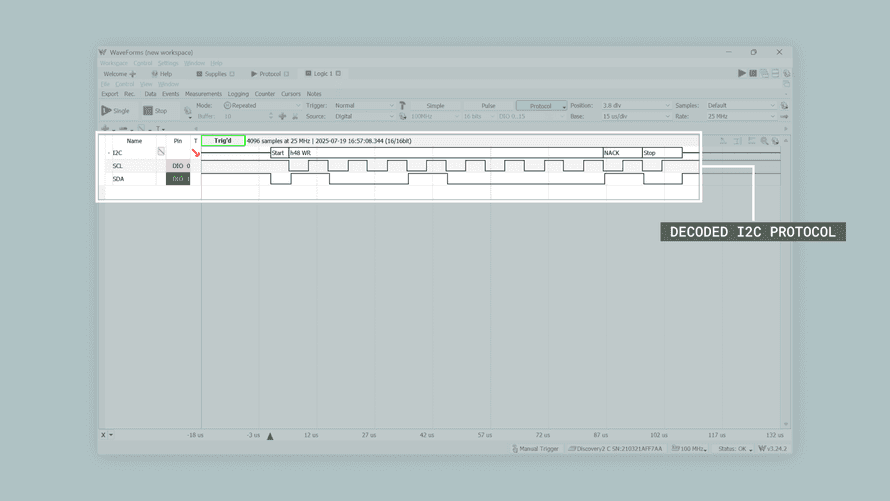

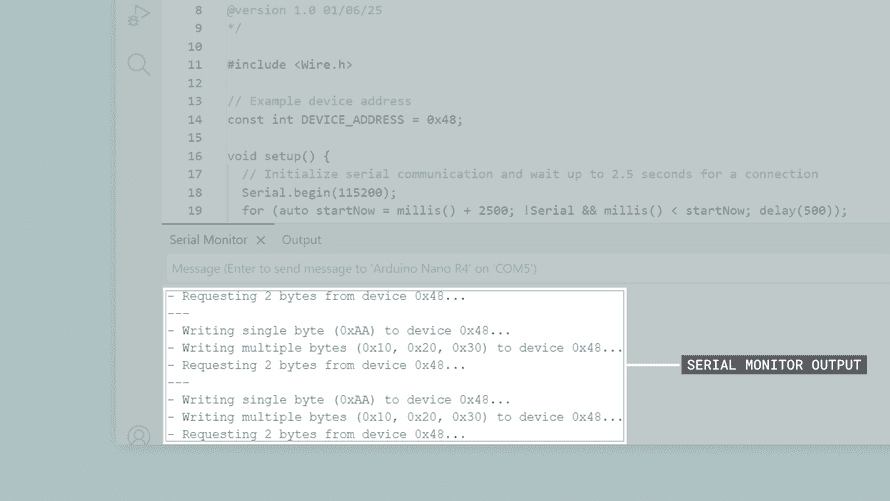

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

// Example: Communicating with multiple I2C devices
void communicateWithMultipleDevices() {
  // Device addresses (examples)
  const int SENSOR_ADDRESS = 0x48;    // Temperature sensor
  const int DISPLAY_ADDRESS = 0x3C;   // OLED display
  const int EEPROM_ADDRESS = 0x50;    // External EEPROM

  // Read from temperature sensor
  Wire.beginTransmission(SENSOR_ADDRESS);
  Wire.write(0x00);  // Register to read
  Wire.endTransmission();

  Wire.requestFrom(SENSOR_ADDRESS, 2);
  if (Wire.available() >= 2) {
    int tempHigh = Wire.read();
    int tempLow = Wire.read();
    Serial.print("Temperature: ");
    Serial.println((tempHigh << 8) | tempLow);
  }

  // Send data to display
  Wire.beginTransmission(DISPLAY_ADDRESS);
  Wire.write(0x40);  // Data mode
  Wire.write(0xFF);  // Sample data
  Wire.endTransmission();

  // Write to EEPROM
  Wire.beginTransmission(EEPROM_ADDRESS);
  Wire.write(0x00);  // Memory address
  Wire.write(0x55);  // Data to write
  Wire.endTransmission();
}
