液晶ディスプレイ(LCD)

ArduinoとLCDの配線方法と、便利なサンプル集を通じたLiquidCrystalライブラリの使い方を紹介します。

LAST REVISION: 2022/10/05 22:00

この記事は、2021/11/18にKarl Söderby氏により改定されました。

LiquidCrystalは、Hitachi HD44780互換ドライバのLCDを制御することができます。多くのLCDがありますが、通常16ピンインターフェイスで見分けることができます。

LCDはパラレルインターフェイスなので、ディスプレイを制御するには、マイクロコントローラーはいくつかのインターフェイスピンを同時に操作する必要があります。インターフェイスには、以下のようなものがあります。

レジスタ選択(RS)ピン。LCDのどのメモリにデータを書き込むかを制御します。画面に各データを保持するデータレジスタか、LCDのコントローラが次に何をするのかを表す命令を保持する命令レジスタを選択できます。
読み書き(R/W)ピン。書き込みモード化読み込みモードかを選択します。
イネーブルピン。レジスタへの書き込みを許可します。
8つのデータピン(D0-D7)。これらのピンの状態(HIGHかLOW)は、書き込み時はレジスタに書き込むビット、読み込み時はレジスタから読み出すビットを表します。

また、ディスプレイのコントラストスピン(Vo)や、電源ピン(+5VとGND)、LEDのバックライトピン(Bklt+とBklt-)があり、それぞれ、LCDのコントラストを制御したり、電源を供給したり、LEDバックライトのオン・オフを制御したりします。

ディスプレイの制御プロセスでは、表示したいイメージを示すデータをデータレジスタへ配置し、命令レジスタに命令を書き込みます。LiquidCrystalライブラリは、これらの操作を簡単にするので、低レベル命令を知る必要がありません。

日立互換のLCDは、4ビットモードか8ビットモードの2つのモードで制御できます。4ビットモードでは、Arduinoの7本のI/Oピンを使い、8ビットモードでは11本のピンを使います。文字をスクリーンに表示するには、ほとんど4ビットモードで間に合うので、例では、16列2行のLCDを4ビットモードで制御する方法を示します。

必要なハードウェア

Arduinoボード
LCD(日立HD44780ドライバ互換)
LCDピンにはんだ付けするピンヘッダ
10kΩの可変抵抗
220オームの抵抗
接続線
ブレッドボード

回路

この回路は当初Arduino UNO用に設計されたことに注意してください。ArduinoはSPIでディスプレイと通信するので、11番と12番ピンは利用するボードにより変わります。例えば、MKR WiFi 1010では、SSPIバスは8番ピンと11番ピンに接続されています。

ArduinoボードとLCDを接続する前に、次の図に示すように、LCDのピンコネクタに14ピン(もしくは1番ピン)のピンヘッダをはんだ付けすることを推奨します。

LCDとボードを配線するは、以下ピンを接続してください。

LCD RSピンとデジタルの12番ピン
LCDイネーブルピンとデジタルの11番ピン
LCD D4ピンとデジタルの5番ピン
LCD D5ピンとデジタルの4番ピン
LCD D6ピンとデジタルの3番ピン
LCD D7ピンとデジタルの2番ピン
LCD R/WピンとGND
LCD VSSピンとGND
LCD VCCピンと5V
LCD LED+を220オームの抵抗を通じて5V
LCD LED-をGND

さらに、10kΩの可変抵抗を+5VとGNDに接続し、出力をLCDのV0ピン(3番ピン)に接続します。

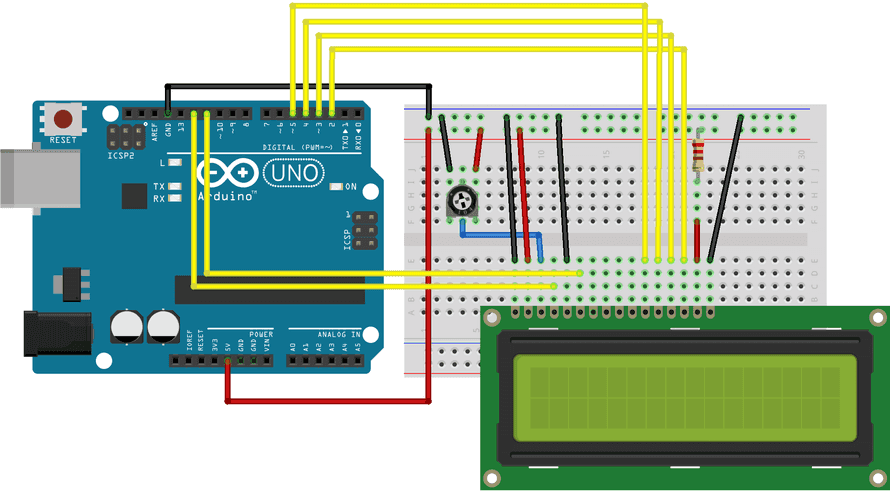

回路図

Hello Worldの例

このスケッチはLCDにHello Worldと、Arduinoがリセットされてからの秒数を表示します。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64


/*
  LiquidCrystal Library - Hello World

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal
 library works with all LCD displays that are compatible with the
 Hitachi HD44780 driver. There are many of them out there, and you
 can usually tell them by the 16-pin interface.

 This sketch prints "Hello World!" to the LCD
 and shows the time.

  The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * LCD VSS pin to ground
 * LCD VCC pin to 5V
 * 10K resistor:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008
 by David A. Mellis
 library modified 5 Jul 2009
 by Limor Fried (http://www.ladyada.net)
 example added 9 Jul 2009
 by Tom Igoe
 modified 22 Nov 2010
 by Tom Igoe
 modified 7 Nov 2016
 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalHelloWorld

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to
const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
  // Print a message to the LCD.
  lcd.print("hello, world!");
}

void loop() {
  // set the cursor to column 0, line 1
  // (note: line 1 is the second row, since counting begins with 0):
  lcd.setCursor(0, 1);
  // print the number of seconds since reset:
  lcd.print(millis() / 1000);
}

オートスクロールの例

この例は、ディスプレイ上の全ての文字を左または右に動かすautoscroll()とnoAutoscroll()メソッドの使い方を示します。

autoscroll()は、文字が追加されるたびに全ての文字をひとつ左に移動します。
noAutoscroll()は、スクロールを停止します。

このスケッチは0から9までの文字を、オートスクロールオフの状態で表示します。その後、カーソルを右下に移動させ、オートスクロールをオンにし、再度0から9までを表示します。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123


/*

  LiquidCrystal Library - Autoscroll

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal

 library works with all LCD displays that are compatible with the

 Hitachi HD44780 driver. There are many of them out there, and you

 can usually tell them by the 16-pin interface.

 This sketch demonstrates the use of the autoscroll()

 and noAutoscroll() functions to make new text scroll or not.

 The circuit:

 * LCD RS pin to digital pin 12

 * LCD Enable pin to digital pin 11

 * LCD D4 pin to digital pin 5

 * LCD D5 pin to digital pin 4

 * LCD D6 pin to digital pin 3

 * LCD D7 pin to digital pin 2

 * LCD R/W pin to ground

 * 10K resistor:

 * ends to +5V and ground

 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008

 by David A. Mellis

 library modified 5 Jul 2009

 by Limor Fried (http://www.ladyada.net)

 example added 9 Jul 2009

 by Tom Igoe

 modified 22 Nov 2010

 by Tom Igoe

 modified 7 Nov 2016

 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalAutoscroll

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to

const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;

LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(16, 2);
}

void loop() {

  // set the cursor to (0,0):

  lcd.setCursor(0, 0);

  // print from 0 to 9:

  for (int thisChar = 0; thisChar < 10; thisChar++) {

    lcd.print(thisChar);

    delay(500);

  }

  // set the cursor to (16,1):

  lcd.setCursor(16, 1);

  // set the display to automatically scroll:

  lcd.autoscroll();

  // print from 0 to 9:

  for (int thisChar = 0; thisChar < 10; thisChar++) {

    lcd.print(thisChar);

    delay(500);

  }

  // turn off automatic scrolling

  lcd.noAutoscroll();

  // clear screen for the next loop:

  lcd.clear();
}

Blinkの例

この例は、ブロックスタイルのカーソルを部リンクさせるblink()とnoBlink()の使い方を示します。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99


/*

  LiquidCrystal Library - Blink

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal

 library works with all LCD displays that are compatible with the

 Hitachi HD44780 driver. There are many of them out there, and you

 can usually tell them by the 16-pin interface.

 This sketch prints "Hello World!" to the LCD and makes the

 cursor block blink.

 The circuit:

 * LCD RS pin to digital pin 12

 * LCD Enable pin to digital pin 11

 * LCD D4 pin to digital pin 5

 * LCD D5 pin to digital pin 4

 * LCD D6 pin to digital pin 3

 * LCD D7 pin to digital pin 2

 * LCD R/W pin to ground

 * 10K resistor:

   * ends to +5V and ground

   * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008

 by David A. Mellis

 library modified 5 Jul 2009

 by Limor Fried (http://www.ladyada.net)

 example added 9 Jul 2009

 by Tom Igoe

 modified 22 Nov 2010

 by Tom Igoe

 modified 7 Nov 2016

 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalBlink

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to

const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;

LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(16, 2);

  // Print a message to the LCD.

  lcd.print("hello, world!");
}

void loop() {

  // Turn off the blinking cursor:

  lcd.noBlink();

  delay(3000);

  // Turn on the blinking cursor:

  lcd.blink();

  delay(3000);
}

カーソル

この例は、下線形式のカーソルを制御するcursor()とnoCursor()の使い方を示します。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101


/*

  LiquidCrystal Library - Cursor

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal

 library works with all LCD displays that are compatible with the

 Hitachi HD44780 driver. There are many of them out there, and you

 can usually tell them by the 16-pin interface.

 This sketch prints "Hello World!" to the LCD and

 uses the cursor()  and noCursor() methods to turn

 on and off the cursor.

 The circuit:

 * LCD RS pin to digital pin 12

 * LCD Enable pin to digital pin 11

 * LCD D4 pin to digital pin 5

 * LCD D5 pin to digital pin 4

 * LCD D6 pin to digital pin 3

 * LCD D7 pin to digital pin 2

 * LCD R/W pin to ground

 * 10K resistor:

 * ends to +5V and ground

 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008

 by David A. Mellis

 library modified 5 Jul 2009

 by Limor Fried (http://www.ladyada.net)

 example added 9 Jul 2009

 by Tom Igoe

 modified 22 Nov 2010

 by Tom Igoe

 modified 7 Nov 2016

 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalCursor

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to

const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;

LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(16, 2);

  // Print a message to the LCD.

  lcd.print("hello, world!");
}

void loop() {

  // Turn off the cursor:

  lcd.noCursor();

  delay(500);

  // Turn on the cursor:

  lcd.cursor();

  delay(500);
}

表示の例

この例は、ディスプレイの点灯・消灯を制御するdisplay()とnoDisplay()の使い方を示します。noDisplay()を使っても、表示している文字は保持されているので、それらを失うことなく表示を簡単に消す方法です。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64


/*
  LiquidCrystal Library - display() and noDisplay()

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal
 library works with all LCD displays that are compatible with the
 Hitachi HD44780 driver. There are many of them out there, and you
 can usually tell them by the 16-pin interface.

 This sketch prints "Hello World!" to the LCD and uses the
 display() and noDisplay() functions to turn on and off
 the display.

 The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * 10K resistor:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008
 by David A. Mellis
 library modified 5 Jul 2009
 by Limor Fried (http://www.ladyada.net)
 example added 9 Jul 2009
 by Tom Igoe
 modified 22 Nov 2010
 by Tom Igoe
 modified 7 Nov 2016
 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalDisplay

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to
const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
  // Print a message to the LCD.
  lcd.print("hello, world!");
}

void loop() {
  // Turn off the display:
  lcd.noDisplay();
  delay(500);
  // Turn on the display:
  lcd.display();
  delay(500);
}

スクロールの例

この例は、文字が流れる方向を制御するscrollDisplayLeft()とscrollDisplayRight()の使い方を示します。“Hello World!“をスクリーンに表示し、左にスクロールし画面の外に出し、その後、右にスクロールし画面の外に出し、最後に元の位置に戻ります。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89


/*
  LiquidCrystal Library - scrollDisplayLeft() and scrollDisplayRight()

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal
 library works with all LCD displays that are compatible with the
 Hitachi HD44780 driver. There are many of them out there, and you
 can usually tell them by the 16-pin interface.

 This sketch prints "Hello World!" to the LCD and uses the
 scrollDisplayLeft() and scrollDisplayRight() methods to scroll
 the text.

  The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * 10K resistor:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008
 by David A. Mellis
 library modified 5 Jul 2009
 by Limor Fried (http://www.ladyada.net)
 example added 9 Jul 2009
 by Tom Igoe
 modified 22 Nov 2010
 by Tom Igoe
 modified 7 Nov 2016
 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalScroll

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to
const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
  // Print a message to the LCD.
  lcd.print("hello, world!");
  delay(1000);
}

void loop() {
  // scroll 13 positions (string length) to the left
  // to move it offscreen left:
  for (int positionCounter = 0; positionCounter < 13; positionCounter++) {
    // scroll one position left:
    lcd.scrollDisplayLeft();
    // wait a bit:
    delay(150);
  }

  // scroll 29 positions (string length + display length) to the right
  // to move it offscreen right:
  for (int positionCounter = 0; positionCounter < 29; positionCounter++) {
    // scroll one position right:
    lcd.scrollDisplayRight();
    // wait a bit:
    delay(150);
  }

  // scroll 16 positions (display length + string length) to the left
  // to move it back to center:
  for (int positionCounter = 0; positionCounter < 16; positionCounter++) {
    // scroll one position left:
    lcd.scrollDisplayLeft();
    // wait a bit:
    delay(150);
  }

  // delay at the end of the full loop:
  delay(1000);

}

シリアルを表示する例

このスケッチ例は、ホストPCからシリアル入力を受け付け、入力をLCDに表示します。これを使うには、スケッチをアップロードした後、シリアルモニタを開き、文字を打ち込み、送信ボタンを押します。打ち込んだ文字がLCDに表示されます。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69


/*
  LiquidCrystal Library - Serial Input

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal
 library works with all LCD displays that are compatible with the
 Hitachi HD44780 driver. There are many of them out there, and you
 can usually tell them by the 16-pin interface.

 This sketch displays text sent over the serial port
 (e.g. from the Serial Monitor) on an attached LCD.

 The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * 10K resistor:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008
 by David A. Mellis
 library modified 5 Jul 2009
 by Limor Fried (http://www.ladyada.net)
 example added 9 Jul 2009
 by Tom Igoe
 modified 22 Nov 2010
 by Tom Igoe
 modified 7 Nov 2016
 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalSerialDisplay

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to
const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

void setup() {
  // set up the LCD's number of columns and rows:
  lcd.begin(16, 2);
  // initialize the serial communications:
  Serial.begin(9600);
}

void loop() {
  // when characters arrive over the serial port...
  if (Serial.available()) {
    // wait a bit for the entire message to arrive
    delay(100);
    // clear the screen
    lcd.clear();
    // read all the available characters
    while (Serial.available() > 0) {
      // display each character to the LCD
      lcd.write(Serial.read());
    }
  }
}

カーソル設定の例

この例は、カーソル位置を変更するsetCursor()の使い方を示します。カーソルを動かすには、行と列の位置を指定しsetCursor()を呼び出します。例えば、16桁2行のディスプレイでは、

1
2
3
4


lcd.setCursor(0, 0); // top left
lcd.setCursor(15, 0); // top right
lcd.setCursor(0, 1); // bottom left
lcd.setCursor(15, 1); // bottom right

全体を示します。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118


/*

  LiquidCrystal Library - setCursor

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal

 library works with all LCD displays that are compatible with the

 Hitachi HD44780 driver. There are many of them out there, and you

 can usually tell them by the 16-pin interface.

 This sketch prints to all the positions of the LCD using the

 setCursor() method:

  The circuit:

 * LCD RS pin to digital pin 12

 * LCD Enable pin to digital pin 11

 * LCD D4 pin to digital pin 5

 * LCD D5 pin to digital pin 4

 * LCD D6 pin to digital pin 3

 * LCD D7 pin to digital pin 2

 * LCD R/W pin to ground

 * 10K resistor:

 * ends to +5V and ground

 * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008

 by David A. Mellis

 library modified 5 Jul 2009

 by Limor Fried (http://www.ladyada.net)

 example added 9 Jul 2009

 by Tom Igoe

 modified 22 Nov 2010

 by Tom Igoe

 modified 7 Nov 2016

 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalSetCursor

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to

const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;

LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

// these constants won't change.  But you can change the size of
// your LCD using them:

const int numRows = 2;

const int numCols = 16;

void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(numCols, numRows);
}

void loop() {

  // loop from ASCII 'a' to ASCII 'z':

  for (int thisLetter = 'a'; thisLetter <= 'z'; thisLetter++) {

    // loop over the columns:

    for (int  thisRow = 0; thisRow < numRows; thisRow++) {

      // loop over the rows:

      for (int thisCol = 0; thisCol < numCols; thisCol++) {

        // set the cursor position:

        lcd.setCursor(thisCol, thisRow);

        // print the letter:

        lcd.write(thisLetter);

        delay(200);

      }

    }

  }
}

文字の方向の例

この例は、leftToRight()とrightToLeft()の使い方を示します。これらのメソッドは、カーソルのどちら側に文字が流れていくのかを制御します。

rightToLeft()は、表示が右揃えしているように、文字をカーソルから左側に流します。
leftToRight()は、表示が左揃えしているように、文字をカーソルから右側に流します。

このスケッチは、aからlを右から左に表示し、mからrを左から右、その後、sからzを再度右から左に表示します。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135


/*

 LiquidCrystal Library - TextDirection

 Demonstrates the use a 16x2 LCD display.  The LiquidCrystal

 library works with all LCD displays that are compatible with the

 Hitachi HD44780 driver. There are many of them out there, and you

 can usually tell them by the 16-pin interface.

 This sketch demonstrates how to use leftToRight() and rightToLeft()

 to move the cursor.

 The circuit:

  * LCD RS pin to digital pin 12

  * LCD Enable pin to digital pin 11

  * LCD D4 pin to digital pin 5

  * LCD D5 pin to digital pin 4

  * LCD D6 pin to digital pin 3

  * LCD D7 pin to digital pin 2

  * LCD R/W pin to ground

  * 10K resistor:

  * ends to +5V and ground

  * wiper to LCD VO pin (pin 3)

 Library originally added 18 Apr 2008

 by David A. Mellis

 library modified 5 Jul 2009

 by Limor Fried (http://www.ladyada.net)

 example added 9 Jul 2009

 by Tom Igoe

 modified 22 Nov 2010

 by Tom Igoe

 modified 7 Nov 2016

 by Arturo Guadalupi

 This example code is in the public domain.

 http://www.arduino.cc/en/Tutorial/LiquidCrystalTextDirection

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to

const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;

LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

int thisChar = 'a';

void setup() {

  // set up the LCD's number of columns and rows:

  lcd.begin(16, 2);

  // turn on the cursor:

  lcd.cursor();
}

void loop() {

  // reverse directions at 'm':

  if (thisChar == 'm') {

    // go right for the next letter

    lcd.rightToLeft();

  }

  // reverse again at 's':

  if (thisChar == 's') {

    // go left for the next letter

    lcd.leftToRight();

  }

  // reset at 'z':

  if (thisChar > 'z') {

    // go to (0,0):

    lcd.home();

    // start again at 0

    thisChar = 'a';

  }

  // print the character

  lcd.write(thisChar);

  // wait a second:

  delay(1000);

  // increment the letter:

  thisChar++;
}

独自文字

この例は、LCDに表示する独自文字を追加する方法を示します。

この例では、追加の可変抵抗が必要です。

外側のピンを5VとGNDに接続
真ん中のピンをA0に接続

この可変抵抗は、delayTime変数を制御します。

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147


/*
  LiquidCrystal Library - Custom Characters

 Demonstrates how to add custom characters on an LCD  display.
 The LiquidCrystal library works with all LCD displays that are
 compatible with the  Hitachi HD44780 driver. There are many of
 them out there, and you can usually tell them by the 16-pin interface.

 This sketch prints "I <heart> Arduino!" and a little dancing man
 to the LCD.

  The circuit:
 * LCD RS pin to digital pin 12
 * LCD Enable pin to digital pin 11
 * LCD D4 pin to digital pin 5
 * LCD D5 pin to digital pin 4
 * LCD D6 pin to digital pin 3
 * LCD D7 pin to digital pin 2
 * LCD R/W pin to ground
 * 10K potentiometer:
 * ends to +5V and ground
 * wiper to LCD VO pin (pin 3)
 * 10K poterntiometer on pin A0

 created 21 Mar 2011
 by Tom Igoe
 modified 11 Nov 2013
 by Scott Fitzgerald
 modified 7 Nov 2016
 by Arturo Guadalupi

 Based on Adafruit's example at
 https://github.com/adafruit/SPI_VFD/blob/master/examples/createChar/createChar.pde

 This example code is in the public domain.
 http://www.arduino.cc/en/Tutorial/LiquidCrystalCustomCharacter

 Also useful:
 http://icontexto.com/charactercreator/

*/

// include the library code:
#include <LiquidCrystal.h>

// initialize the library by associating any needed LCD interface pin
// with the arduino pin number it is connected to
const int rs = 12, en = 11, d4 = 5, d5 = 4, d6 = 3, d7 = 2;
LiquidCrystal lcd(rs, en, d4, d5, d6, d7);

// make some custom characters:
byte heart[8] = {
  0b00000,
  0b01010,
  0b11111,
  0b11111,
  0b11111,
  0b01110,
  0b00100,
  0b00000
};

byte smiley[8] = {
  0b00000,
  0b00000,
  0b01010,
  0b00000,
  0b00000,
  0b10001,
  0b01110,
  0b00000
};

byte frownie[8] = {
  0b00000,
  0b00000,
  0b01010,
  0b00000,
  0b00000,
  0b00000,
  0b01110,
  0b10001
};

byte armsDown[8] = {
  0b00100,
  0b01010,
  0b00100,
  0b00100,
  0b01110,
  0b10101,
  0b00100,
  0b01010
};

byte armsUp[8] = {
  0b00100,
  0b01010,
  0b00100,
  0b10101,
  0b01110,
  0b00100,
  0b00100,
  0b01010
};

void setup() {
  // initialize LCD and set up the number of columns and rows:
  lcd.begin(16, 2);

  // create a new character
  lcd.createChar(0, heart);
  // create a new character
  lcd.createChar(1, smiley);
  // create a new character
  lcd.createChar(2, frownie);
  // create a new character
  lcd.createChar(3, armsDown);
  // create a new character
  lcd.createChar(4, armsUp);

  // set the cursor to the top left
  lcd.setCursor(0, 0);

  // Print a message to the lcd.
  lcd.print("I ");
  lcd.write(byte(0)); // when calling lcd.write() '0' must be cast as a byte
  lcd.print(" Arduino! ");
  lcd.write((byte)1);

}

void loop() {
  // read the potentiometer on A0:
  int sensorReading = analogRead(A0);
  // map the result to 200 - 1000:
  int delayTime = map(sensorReading, 0, 1023, 200, 1000);
  // set the cursor to the bottom row, 5th position:
  lcd.setCursor(4, 1);
  // draw the little man, arms down:
  lcd.write(3);
  delay(delayTime);
  lcd.setCursor(4, 1);
  // draw him arms up:
  lcd.write(4);
  delay(delayTime);
}

オリジナルのページ

https://docs.arduino.cc/learn/electronics/lcd-displays

最終更新日

November 1, 2022
